Male-male JIC union (S260)
search
  • Male-male JIC union (S260)

Male-male JIC union (S260)

€7.06
Tax included Delivery in 1 to 5 working days.

(5.74 € No tax)

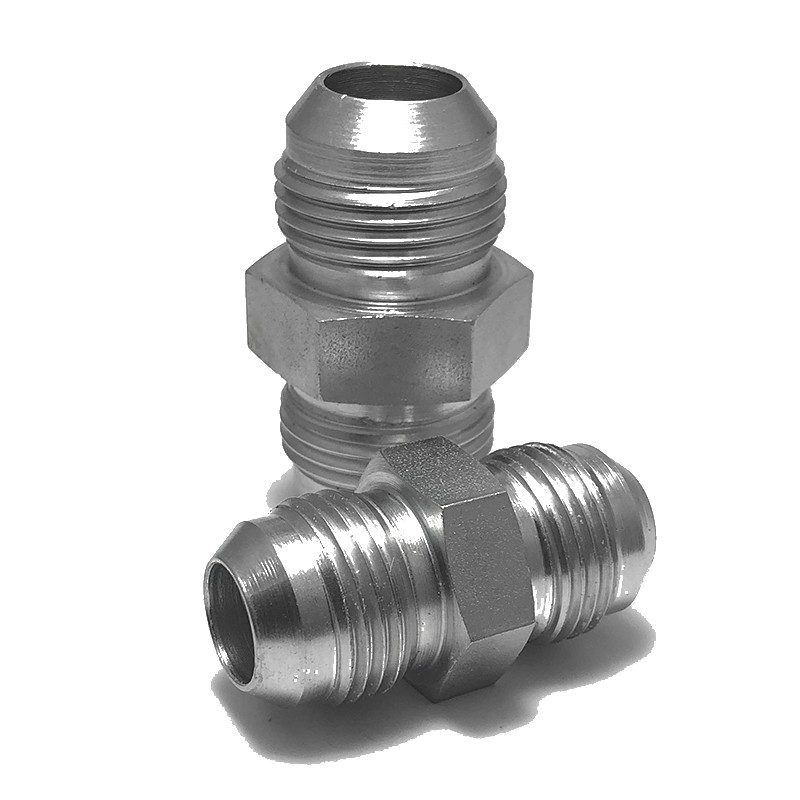

Straight union with two male JIC 37° ends of the same size, to join two female JIC hose fittings in line. S260 series, from 7/16" to 1.5/8".

JIC accessory: 1.1/16"
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0600.1116

€5.74 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

Straight union, S260 series, with a male JIC end at both ends. It joins two hoses with female JIC fittings in line, for example to extend a hose or connect a new one to an existing one without changing fittings.

The JIC connection seals metal to metal on the 37° cone, with no O-ring or washer; the cones must be clean and free of scratches.

Sizes available: 7/16", 1/2", 9/16", 3/4", 7/8", 1.1/16", 1.3/16", 1.5/16" and 1.5/8".

To identify the JIC size, measure the outside diameter of the male thread: about 11.1 mm for 7/16", 14.3 mm for 9/16", 19 mm for 3/4" and 22.2 mm for 7/8".

1.0600.1116

Specific References

ean13
2200111722510

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (9)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
7/16"
1.0600.716
In stock
1/2"
1.0600.12
In stock
9/16"
1.0600.916
In stock
3/4"
1.0600.34
In stock
7/8"
1.0600.78
In stock
1.1/16"
1.0600.1116
Last units
1.3/16"
1.0600.1316
On request
1.5/16"
1.0600.1516
In stock
1.5/8"
1.0600.158
Last units
