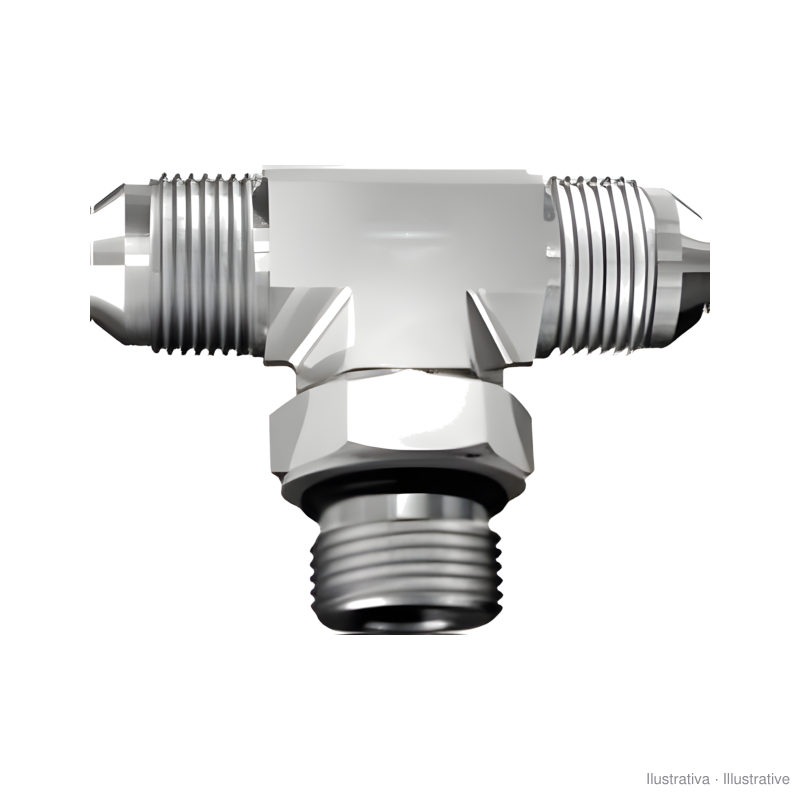

Adjustable male-male-male JIC-UNF tee (S580)

Name: Adjustable male-male-male JIC-UNF tee (S580)
Availability: InStock

€16.71

Tax included Delivery in 1 to 5 working days.

(13.59 € No tax)

Adjustable tee with two male JIC 37° ends and one male UNF end, set in position before tightening. S580 series, in 9/16" and 3/4".

Adjustable JIC-UNF tee: 9/16" - 9/16"

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0624.916916

€13.59 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

Adjustable tee, S580 series, with two male JIC 37° ends and one male UNF end. The UNF side fits a UNF port on the pump, manifold or valve; the tee is turned until the two JIC ends face the hoses and only then tightened. It takes two lines from a single port without forcing the hoses.

There are two sizes, the same on all three ends: 9/16" and 3/4".

Check the UNF port size before ordering: 9/16" is about 14.3 mm thread outside diameter and 3/4" about 19 mm.

Reference 1.0624.916916
