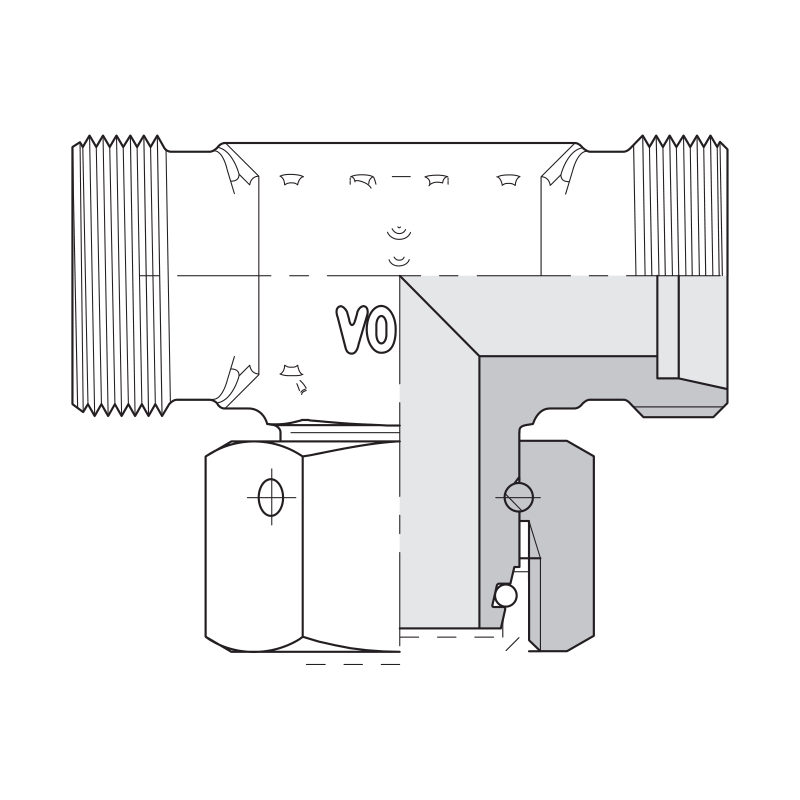

EVT male-female-male tee

Tee for the DIN 2353 system (ISO 8434-1, 24° cone) where the branch has a stud end with taper and O-ring: it goes into a DIN body in place of a tube and can be turned to the right position before final tightening. The other two ends connect to the tube by means of a nut and cutting ring.

• L series (6 to 42 mm) and S series (6 to 38 mm)
• FKM O-ring, according to the VOSS datasheet
• Nominal pressure in the VOSS datasheet: L series 500 bar up to 10 mm, 400 bar from 12 to 18 mm and 250 bar from 22 to 42 mm; S series 800 bar up to 10 mm, 630 bar from 12 to 16 mm and 420 bar from 20 to 38 mm

Choose by the tube outside diameter and the series (L or S), which you can tell from the nut thread: 12L takes an M18x1.5 nut and 12S an M20x1.5 nut. Sold as the body only: the DIN nut and cutting ring are sold separately and are listed in this item's accessories.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.
