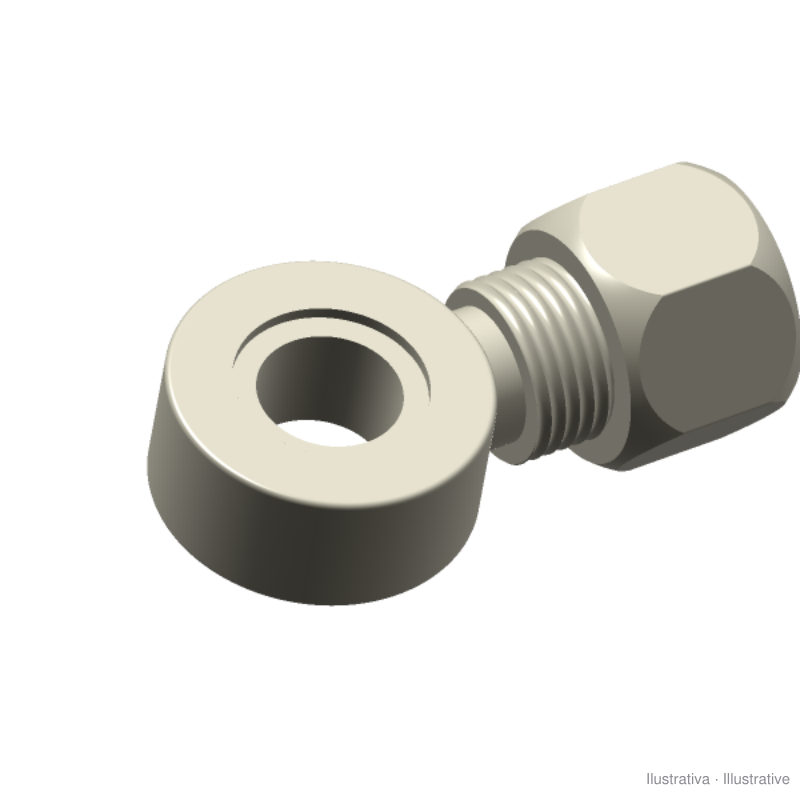

Marchesini ODO banjo with nut and cutting ring 1/2" x 15L (R1300)

Banjo adjustable through 360°, with nut and cutting ring, from Oleodinamica Marchesini (ODO type), to mount a DIN 2353 series valve directly on the cylinder. The 15 mm pipe goes into the valve port and the banjo is fixed to the cylinder port with a 1/2" banjo bolt.

• Marchesini code: R1300 (ODO 1/2" x 15L)
• Banjo bore: Ø21.2 mm, for a 1/2" bolt
• Pipe: Ø15 mm, L series
• Length (L): 44.5 mm
• Material: zinc-plated steel
• Working pressure: 280 bar (burst 780 bar)

Check the banjo bolt thread on the cylinder and the pipe size of the valve before ordering.

Source: Oleodinamica Marchesini technical catalogue, section 16 Fittings for valves mounting, 2006.
