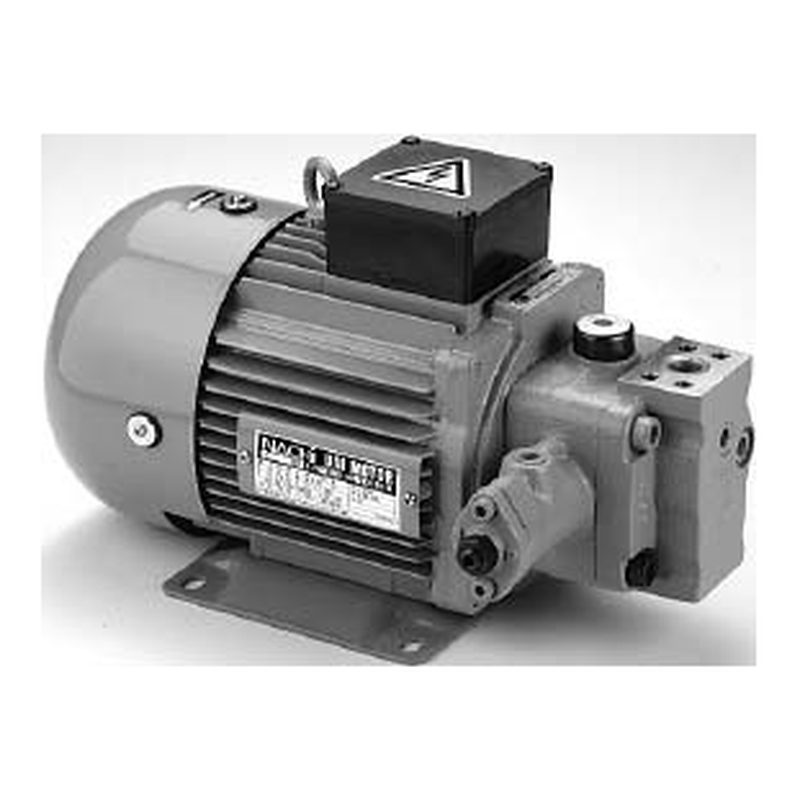

Nachi UVN unipump (pump with motor)

Name: Nachi UVN unipump (pump with motor)
Availability: InStock

* Price on request *

Tax included

Nachi UVN unit with variable displacement vane pump and electric motor in one piece, 16.1 or 26 cc/rev, with motors from 1.5 to 3.7 kW.

Model: UVN-1A-1A3-1.5-4-12 (4P - 200V)

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. NAC.UVN1A1A315412

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The UVN Unipump combines a Nachi variable displacement vane pump with an electric motor built for it, linked by a joint instead of a bellhousing and coupling. It is compact, quiet and runs cool, because it has no external drain. It is used in power packs for machine tools and industrial equipment.

UVN-1A-1A3-1.5-4-12 and UVN-1A-1A3-2.2-4-12: 16.1 cc/rev, pressure adjustment from 35 to 60 bar, 1.5 or 2.2 kW motor
UVN-1A-1A4-1.5-4-12: 16.1 cc/rev, pressure adjustment from 55 to 80 bar, 1.5 kW motor
UVN-1A-2A3-3.7A-4R-30: 26 cc/rev, pressure adjustment from 35 to 60 bar, 3.7 kW IE3 motor at 400 V
No-load flow: 24 l/min (16.1 cc) or 39 l/min (26 cc) at 50 Hz

The first three versions have a 4-pole motor at 200 V: check the mains voltage before ordering. Maximum peak pressure in the circuit: 14 MPa.

Source: Nachi UVN Series Variable Volume Vane Uni-pump technical catalogue.
