Marchesini RS 2 2-way ball valve

* Price on request *
Price including VAT at the legal rate

Marchesini RS 2 2-way ball valve (shut-off valve), 1/4" to 1.1/2", to open and close a hydraulic line by hand.

Ball valves: 1/4" - V0830
Quantity
Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA12.V0830

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

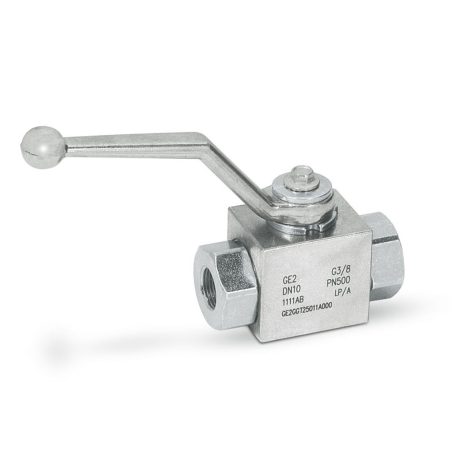

Lever-operated 2-way ball valve, to open or close a hydraulic line by hand, even at maximum pressure. With the lever at 90° to the line the passage is closed; with the lever in line, it is open. A and P can be connected either way round, and the ball seal does not leak.

  • 1/4" (V0830): 25 l/min, 500 bar
  • 3/8" (V0840/FF): 35 l/min, 500 bar
  • 1/2" (V0850): 60 l/min, 500 bar
  • 3/4" (V0860): 100 l/min, 400 bar
  • 1" (V0870), 1.1/4" (V0871) and 1.1/2" (V0874): 180 l/min, 350 bar
  • Zinc-plated steel body, ground and chrome-plated steel internals, NBR and POM seals

Codes with /FF have fixing holes in the body; the 3/8" size only comes in that version. The Marchesini catalogue is in the attachments.

Source: Oleodinamica Marchesini technical catalogue, section 11 High pressure ball valves, 2008.

1.MA12.V0830

Data sheet

Port thread
G 1
G 1 1/2
G 1 1/4
G 1/2
G 1/4
G 3/4
G 3/8

Specific References

Internal barcode
2200008708207
MPN
V0830

Customers who bought this product also bought:

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (13)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
1/4" - V0830
1.MA12.V0830
On request
1/4" - V0830/FF
1.MA12.V0830/FF
In stock
3/8" - V0840/FF
1.MA12.V0840/FF
In stock
1/2" - V0850
1.MA12.V0850
Last units
1/2" - V0850/FF
1.MA12.V0850/FF
In stock
3/4" - V0860
1.MA12.V0860
Last units
3/4" - V0860/FF
1.MA12.V0860/FF
In stock
1" - V0870
1.MA12.V0870
On request
1" - V0870/FF
1.MA12.V0870/FF
In stock
1.1/4" - V0871
1.MA12.V0871
Last units
1.1/4" - V0871/FF
1.MA12.V0871/FF
Last units
1.1/2" - V0874
1.MA12.V0874
Last units
1.1/2" - V0874/FF
1.MA12.V0874/FF
Last units
