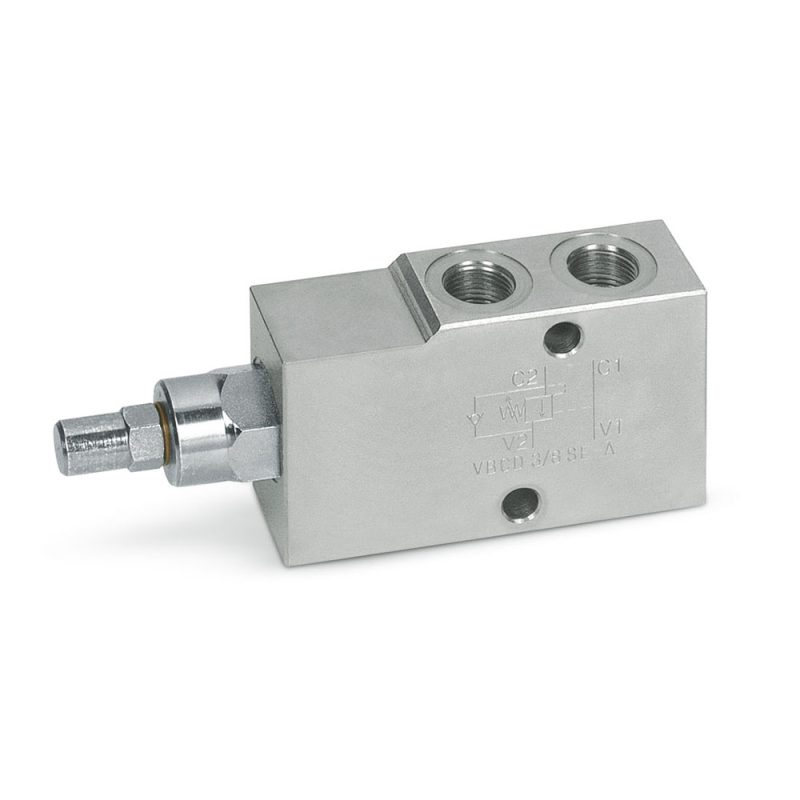

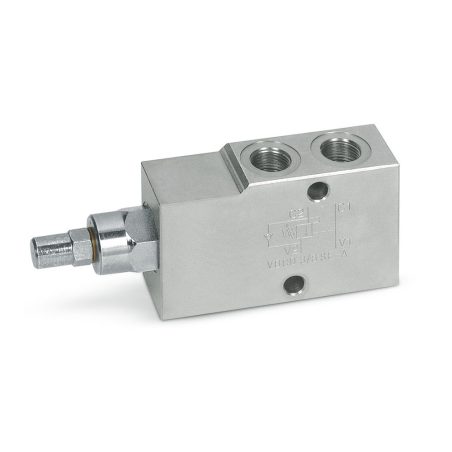

Marchesini VBCD SE A overcentre valve

Name: Marchesini VBCD SE A overcentre valve
Brand: Oleodinamica Marchesini
Availability: InStock

€91.50

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(74.39 € Excluding VAT. VAT at the legal rate applies.)

Marchesini VBCD SE A (type A) single overcentre valve, 3/8" to 1", for open-centre directional valves.

Overcentre valves: 3/8" - V0392

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0392

€74.39 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBCD SE A holds and controls the cylinder in one direction, like the VBCD SE, but with a different port layout and pilot ratio (type A). The load comes down without cavitation and the valve limits the pressure in case of shocks, overloads or sudden movements.

3/8" (V0392): 40 l/min, ratio 1:4.5
1/2" (V0412): 60 l/min, ratio 1:4.5
3/4" (V0419): 100 l/min, ratio 1:5.5
1" (V0417): 150 l/min, ratio 1:5.5

Maximum pressure 350 bar; factory setting 320 bar. Connect V1 and V2 to the directional valve, C1 to the free-flow side of the actuator and C2 to the side that must be held. Before replacing an old valve, check that it is a type A: the port layout is different.

Source: Oleodinamica Marchesini general catalogue 2018; Oleodinamica Marchesini technical catalogue, section Overcentre valves.
