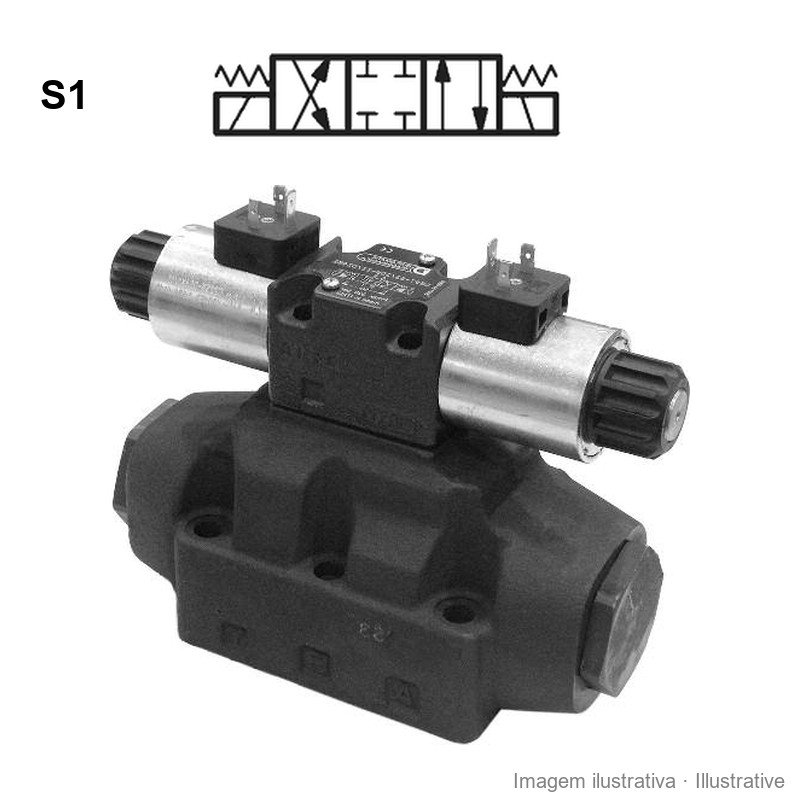

Duplomatic DSP5 / E4P4 pilot operated solenoid valve, NG10 (CETOP 5)
* Price on request *
Tax included
Duplomatic DSP5 and E4P4 pilot operated directional solenoid valve, CETOP P05 mounting (NG10), up to 320 bar and 150 l/min, two 24 V DC coils.
Duplomatic pilot operated directional solenoid valve: a hydraulically operated main valve, with CETOP P05 subplate mounting (NG10 with the X and Y pilot ports), controlled by an NG6 pilot solenoid valve. It is used when the flow is too high for a direct-acting solenoid valve.
- Maximum pressure on ports P, A and B: 320 bar; port T with external drain: 210 bar.
- Maximum flow: 150 l/min (120 l/min at 320 bar; less with the S4 spool, see the data sheet).
- Two coils, three positions, S1 or S4 spool, 24 V DC coils.
In the options you choose the spool (S1 or S4) and the version, DSP5 or E4P4, each with its own pilot and drain arrangement. Before ordering, check on the nameplate and in the circuit how the pilot and drain are arranged, as the subplate must have the X and Y ports connected accordingly.
Source: Duplomatic E*P4 technical catalogue, version 41 400/116 ED; Duplomatic DS(P)*M technical catalogue, version 41 505/216 ED.
D.DSP5S1D24
Data sheet
- CETOP interface
- NG10 (CETOP 5)
NG16 (CETOP 7)
3 other products in the same category:
Are you an OEM? Reseller? Workshop?
All options for this item (4)
Description
Part number
Availability
Price
2 solenoids, 3 positions (4/3) - S1 - DC - 24 V - External drain (E)
D.E4P4S1D24
On request
2 solenoids, 3 positions (4/3) - S1 - DC - 24 V - External pilot and drain (EE)
D.DSP5S1D24
On request
2 solenoids, 3 positions (4/3) - S4 - DC - 24 V - External drain (E)
D.E4P4S4D24
Last units
2 solenoids, 3 positions (4/3) - S4 - DC - 24 V - External pilot and drain (EE)
D.DSP5S4D24
On request
No option matches the filters.
Duplomatic DSP5 and E4P4 pilot operated directional solenoid valve, CETOP P05 mounting (NG10), up to 320 bar and 150 l/min, two 24 V DC coils.
