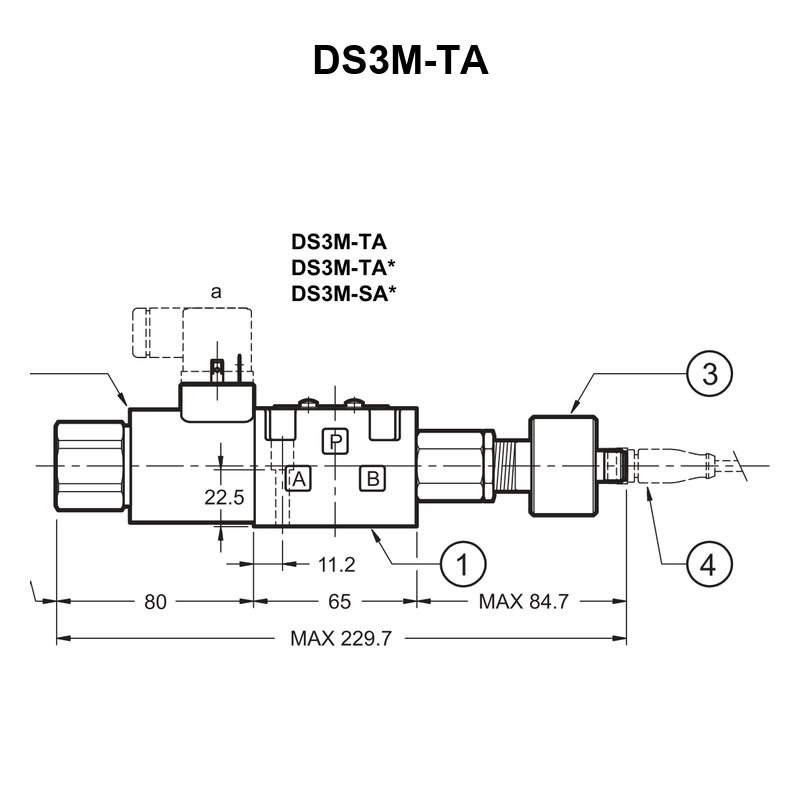

Duplomatic DS3M-TA02 solenoid valve with spool position sensor

Duplomatic DS3M solenoid valve with spool monitoring (NG6)

* Price on request *

Tax included

Duplomatic DS3M directional solenoid valve, NG6 (CETOP 3), with a sensor that confirms the spool position, for circuits with safety requirements. Up to 350 bar and 80 l/min.

DS3: DS3M-TA02/21N-D24K1/MB

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DS3MTA02D24/MB

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

The DS3M is the monitored version of the Duplomatic DS3 solenoid valve: an inductive sensor checks the position of the main spool and gives a binary signal to the PLC. The family is TÜV certified for machine safety standards (EN ISO 4413, presses EN 693 and EN 12622, injection moulding EN 201, rubber and plastics machines EN 422).

ISO 4401-03 mounting, NG6 (CETOP 3)
Pressure: 350 bar on P, A and B; 210 bar on T
Maximum flow: 80 l/min
DC only; no manual override and not to be dismantled, as a safety component

Available option: DS3M-TA02/21N-D24K1/MB, TA02 spool (single solenoid), 24 V DC, DIN 43650 plug (K1), NBR seals and sensor on position b (MB). The PDF datasheet is in the attachments.

Source: Duplomatic DS(P)*M technical catalogue, version 41 505/216 ED.
