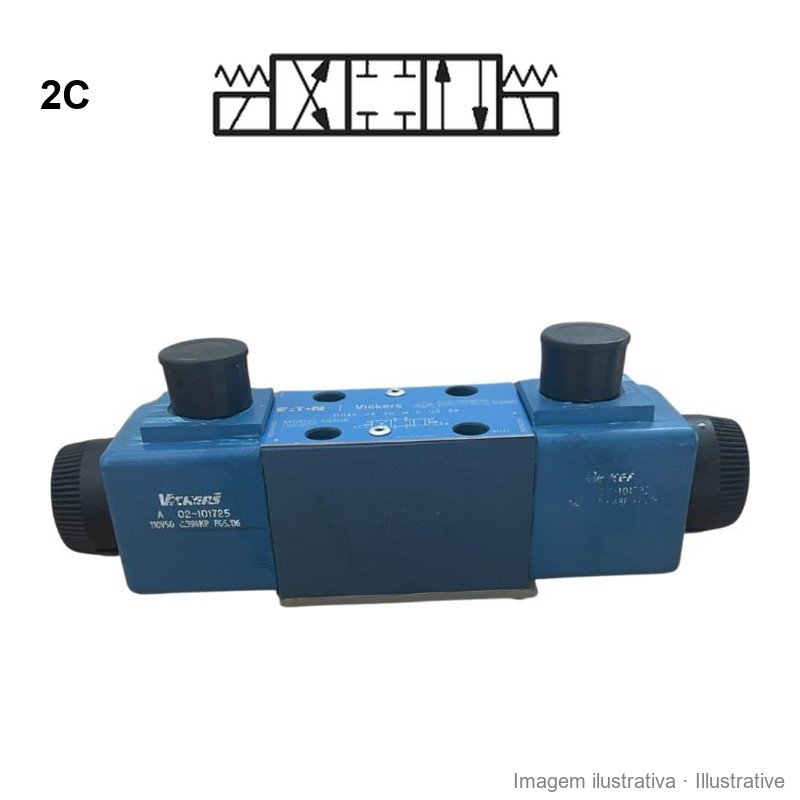

Vickers DG4V-3S solenoid valve (NG6), spool 2C
search
  • Vickers DG4V-3S solenoid valve (NG6), spool 2C

Vickers DG4V-3S solenoid valve (NG6)

€201.84
Tax included Delivery in 1 to 5 working days.

(164.1 € No tax)

Vickers DG4V-3S (Danfoss) directional solenoid valve, NG6 (CETOP 3), standard performance version with T port up to 100 bar. One or two solenoids, AC or DC.

Operation: 2 solenoids, 3 positions (4/3)
Spool: 2C
Current: DC
Voltage: 24 V
Extras: None
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 02-109025

€164.10 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

The DG4V-3S is the standard performance version of the Vickers DG4V-3 directional solenoid valve, now Danfoss, for ISO 4401-03 subplate mounting, NG6 (CETOP 3). The main difference from the DG4V-3 is the T port, which here accepts up to 100 bar; if the return line has higher backpressure, choose the DG4V-3 (up to 207 bar on T with DC coils).

  • Single solenoid with return spring: 0A, 0AL, 2A
  • Two solenoids, three positions: 2C, 8C
  • Coils in 24 V DC, 110 V 50 Hz, 220 V 50 Hz and 220 V 50 Hz / 240 V 60 Hz
  • 8C at 24 V DC also available as soft-shift version, with 0.9 mm orifice (209)

The spool number defines the spool centre (0 open centre, 2 closed centre, 8 tandem); L means left-hand build. Check the full code on the plate of the valve you are replacing.

Source: Vickers 669 Pilot Operated Directional Control Valves technical catalogue, 5/94; Eaton Vickers DG4V-3 parts information, V-VLDI-TP002-E, 03/2009.

02-109025

Data sheet

CETOP interface
NG6 (CETOP 3)

Specific References

ean13
2200001206403

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (11)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
2 solenoids, 3 positions (4/3) - 2C - AC - 220 V 50 Hz - None
1.553S.2CC5
Last units
€180.69
2 solenoids, 3 positions (4/3) - 2C - DC - 24 V - None
02-109025
In stock
€201.84
2 solenoids, 3 positions (4/3) - 8C - DC - 24 V - Soft-shift, 0.9 mm orifice (209)
1.553S.8C209HH5
Last units
€241.67
1 solenoid, 2 positions (4/2) - 0A - AC - 110 V 50 Hz - None
1.553S.0AA5
Last units
€160.52
1 solenoid, 2 positions (4/2) - 0A - AC - 220 V 50 Hz / 240 V 60 Hz - None
1.553S.0AD5
Last units
€158.91
1 solenoid, 2 positions (4/2) - 0A - AC - 220 V 50 Hz / 240 V 60 Hz - None B
02-138356
Last units
€135.84
1 solenoid, 2 positions (4/2) - 2A - AC - 220 V 50 Hz - None
1.553S.2AC5
Last units
€143.04
1 solenoid, 2 positions (4/2) - 0AL - AC - 110 V 50 Hz - None
1.553S.0ALA5
Last units
€160.52
1 solenoid, 2 positions (4/2) - 0AL - AC - 220 V 50 Hz - None
1.553S.0ALC5
Last units
€160.52
1 solenoid, 2 positions (4/2) - 0AL - AC - 220 V 50 Hz - None B
02-310766
Last units
€135.84
1 solenoid, 2 positions (4/2) - 0AL - DC - 24 V - None
1.553S.0ALH5
Last units
€154.46
