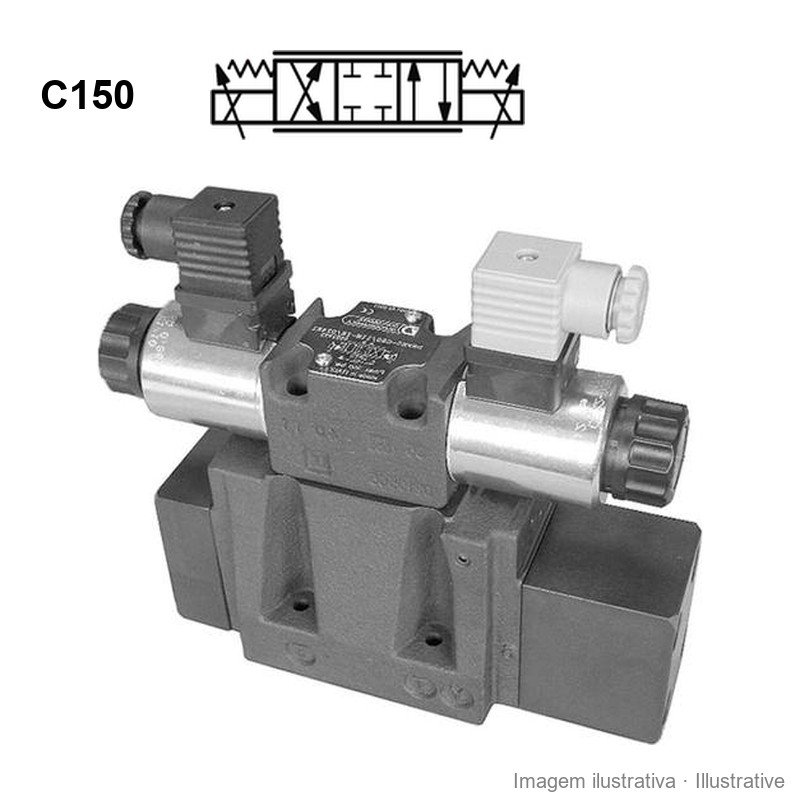

Duplomatic DSPE7 pilot operated proportional directional valve NG16 (CETOP 7)
€1,951.01
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(1586.19 € Excluding VAT. VAT at the legal rate applies.)
Duplomatic DSPE7 pilot operated proportional directional valve, NG16 (CETOP 7), up to 350 bar, 100 and 150 l/min spools.
Duplomatic DSPE7 two-stage proportional directional valve, with ISO 4401-07 interface, NG16 (CETOP 7). A proportional pilot valve moves the main spool, so large flows can be controlled with small solenoids; the opening follows the current in the pilot solenoids.
- Maximum pressure: 350 bar at P, A and B
- A150 and C150: 150 l/min spools at Δp 10 bar, open (A) or closed (C) centre, internal pilot and external drain (IE), 24 V DC
- C100 and C150 with on-board electronics (DSPE7G, E0K11): internal pilot and drain (II)
With external drain, line Y must return to the tank without back pressure. Check the scheme, pilot and drain on the valve nameplate before ordering.
Source: Duplomatic DSPE* technical catalogue, version 83 310/116 ED.
D.DSPE7C150IED24
Data sheet
- CETOP interface
- NG16 (CETOP 7)
NG25 (CETOP 8)
Specific References
- MPN
- DSPE7C150IED24
4 other products in the same category:
Viewed products
Are you an OEM? Reseller? Workshop?
All options for this item (4)
Description
Part number
Availability
Price
2 proportional solenoids, 3 positions - A150 - DC - 24 V - Internal pilot, external drain (IE)
D.DSPE7A150IED24
Last units
2 proportional solenoids, 3 positions - C100 - DC - 24 V (integrated electronics) - Internal pilot and drain (II) + Integrated electronics (E0K11)
D.DSPE7GC100IIE0K110
On request
2 proportional solenoids, 3 positions - C150 - DC - 24 V - Internal pilot, external drain (IE)
D.DSPE7C150IED24
Last units
2 proportional solenoids, 3 positions - C150 - DC - 24 V (integrated electronics) - Internal pilot and drain (II) + Integrated electronics (E0K11)
D.DSPE7GC150IIE0K110
On request
