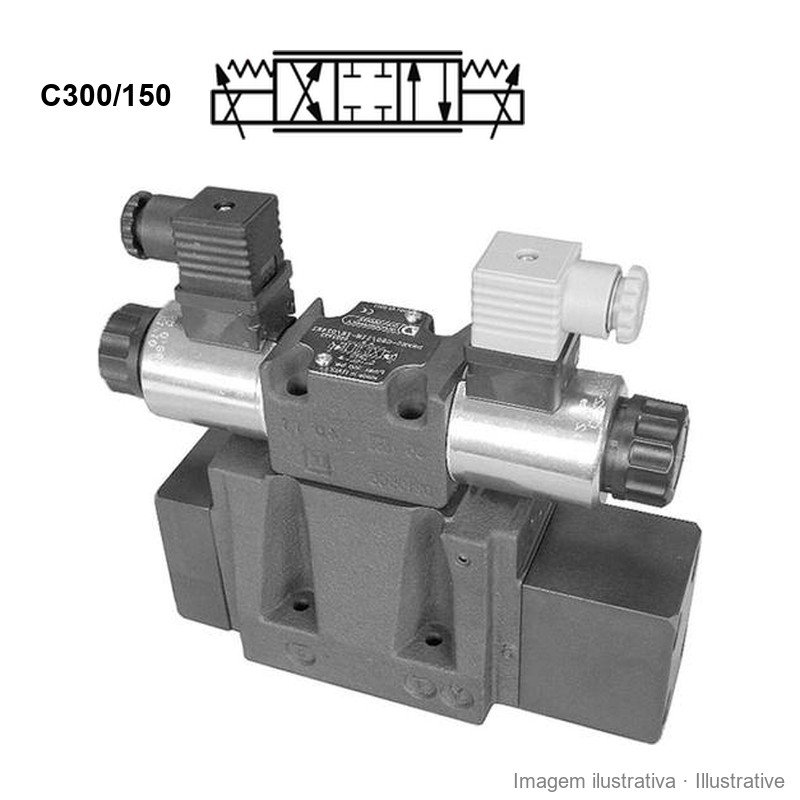

Duplomatic DSPE8 pilot operated proportional valve NG25 (CETOP 8), scheme C300/150

Duplomatic DSPE8 pilot operated proportional directional valve NG25 (CETOP 8)

Name: Duplomatic DSPE8 pilot operated proportional directional valve NG25 (CETOP 8)
Brand: Duplomatic
Availability: InStock

€2,436.80

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(1981.14 € Excluding VAT. VAT at the legal rate applies.)

Duplomatic DSPE8 pilot operated proportional directional valve, NG25 (CETOP 8), up to 350 bar, 300/150 l/min spools.

Operation: 2 proportional solenoids, 3 positions

Spool: C300/150

C300/150
RA300/150

Current: DC

Voltage: 24 V

Extras: External pilot and drain (EE)

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DSPE8C30015011NEED24K1

€1,981.14 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Duplomatic DSPE8 two-stage proportional directional valve, with ISO 4401-08 interface, NG25 (CETOP 8), for large flows on presses, power units and industrial machines. The proportional pilot valve drives the main spool, and the flow follows the solenoid current.

Maximum pressure: 350 bar at P, A and B
C300/150: closed centre, 300 l/min from P to A and 150 l/min from B to T, at Δp 10 bar
RA300/150: open centre with regenerative function, same flows
External pilot and drain (EE), 24 V DC solenoids

The different flows on each side suit cylinders with a large rod, where more oil leaves one side than enters the other. With external pilot, an X line with enough pilot pressure is needed.

Source: Duplomatic DSPE* technical catalogue, version 83 310/116 ED.
