Duplomatic CHM5-D NG10 (CETOP 5) modular double pilot-operated check valve

Name: Duplomatic CHM5-D NG10 (CETOP 5) modular double pilot-operated check valve
Brand: Duplomatic
Availability: InStock

€316.98

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(257.71 € Excluding VAT. VAT at the legal rate applies.)

Duplomatic CHM5-D double pilot-operated check valve, modular NG10 (CETOP 5), holding the actuator on lines A and B, up to 320 bar and 120 l/min.

Duplomatic DS5: CHM5-D/10

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.CHM5D

€257.71 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

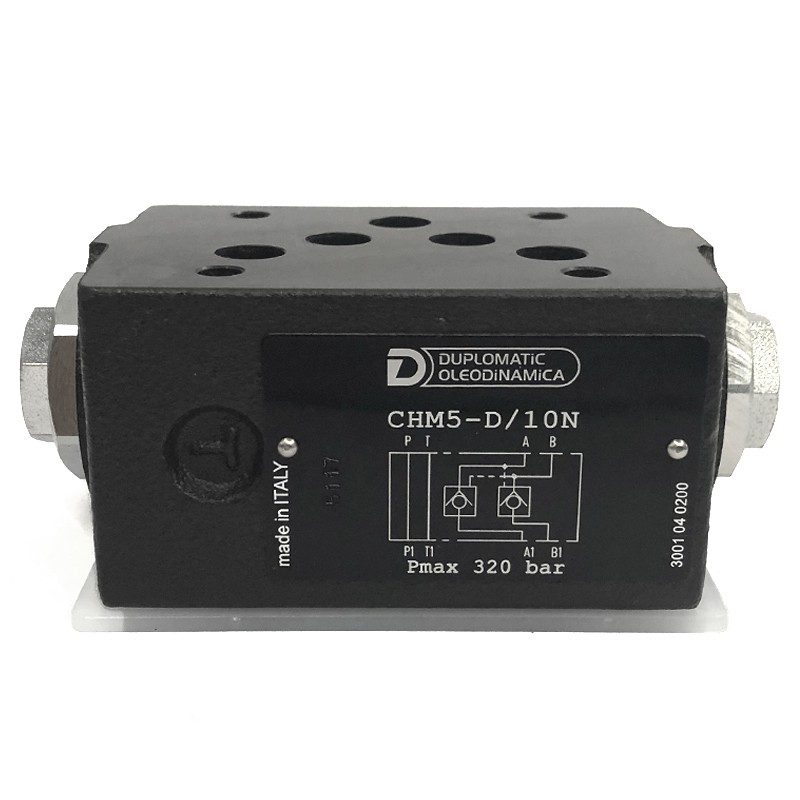

Pilot-operated check valve in modular version, fitted under the NG10 (CETOP 5, ISO 4401-05) solenoid valve. The D version has a check valve on each line, A and B: with the directional valve in the centre position, the cylinder is held in both directions. When one line is pressurised, that pressure opens the check valve on the opposite line and the oil returns to tank.

Maximum pressure: 320 bar
Maximum flow: 120 l/min
Pilot ratio: 2.3:1; decompression ratio: 14.9:1
Check valve cracking pressure: 2 bar
Weight: 2.2 kg

The pre-opening decompresses the cylinder chamber before full opening, so the movement starts smoothly. To hold one side only there are the SA and SB versions.

Source: Duplomatic CHM5 technical catalogue, version 65 360/110 ED.
