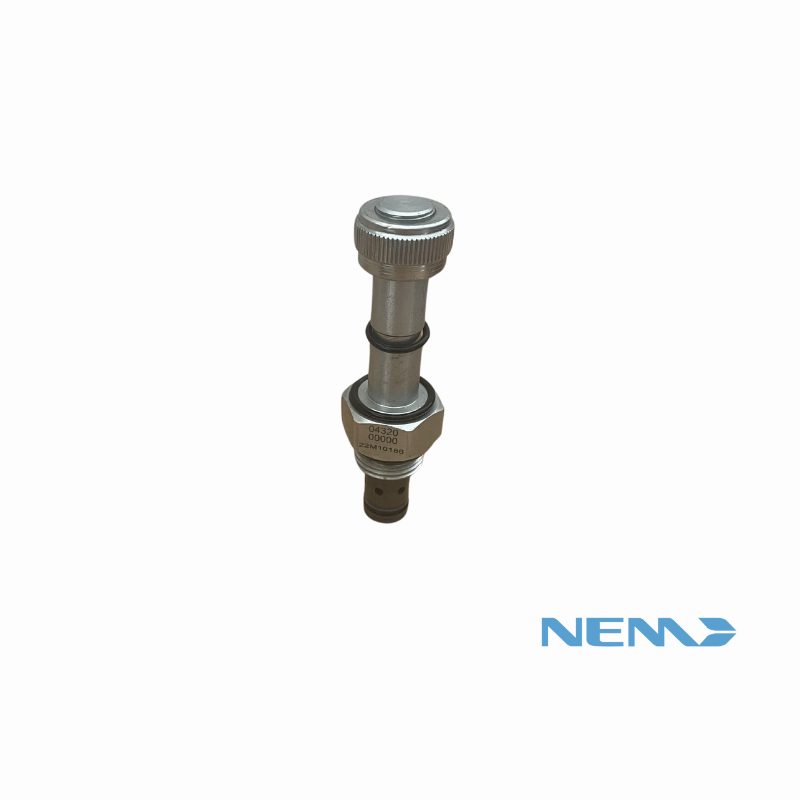

NEM 2/2 spool solenoid valve (cartridge)
€62.68
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(50.96 € Excluding VAT. VAT at the legal rate applies.)
NEM 2/2 spool solenoid cartridge valve, direct acting, SAE 08 for cavity 8-2, up to 15 l/min and 210 bar, in normally open or normally closed version.
NEM 2-way, 2-position solenoid valve, spool type and direct acting, SAE 08 cartridge for cavity 8-2. It opens or closes a passage in a hydraulic block by electrical command.
- Flow up to 15 l/min and maximum pressure 210 bar
- Leakage 40 cm³/min: being a spool valve, it is not leak-tight like a poppet valve
- NBR and PTFE seals; cartridge tightening torque 27 Nm
- Coil 09400, ordered separately
According to the NEM catalogue, the 0432000000 is normally open and the 0432100000 is normally closed (the latter passes 9 l/min with pressure on port 1 and 15 l/min with pressure on port 2). Check the required function and the cavity before ordering.
Source: NEM Mechanical and Electrical Cartridge Valves technical catalogue, DT001GB001 IR00, 14.11.
1.1339.0432000000
Data sheet
- Cavity
- CAV 8-2
4 other products in the same category:
Viewed products
Are you an OEM? Reseller? Workshop?
All options for this item (2)
Description
Part number
Availability
Price
2/2 direct-acting NO 15 l/min 210 bar CAV 08-2 [0432000000]
1.1339.0432000000
In stock
€62.68
2/2 direct-acting NO 15 l/min 210 bar CAV 08-2 [0432100000]
1.1339.0432100000
Last units
€77.38
No option matches the filters.
NEM 2/2 spool solenoid cartridge valve, direct acting, SAE 08 for cavity 8-2, up to 15 l/min and 210 bar, in normally open or normally closed version.
