Duplomatic DS5 solenoid valve NG10 (CETOP 5), spool S1
search
  • Duplomatic DS5 solenoid valve NG10 (CETOP 5), spool S1

Duplomatic DS5 solenoid valve, NG10 (CETOP 5)

* Preço sob consulta *
Price including VAT at the legal rate

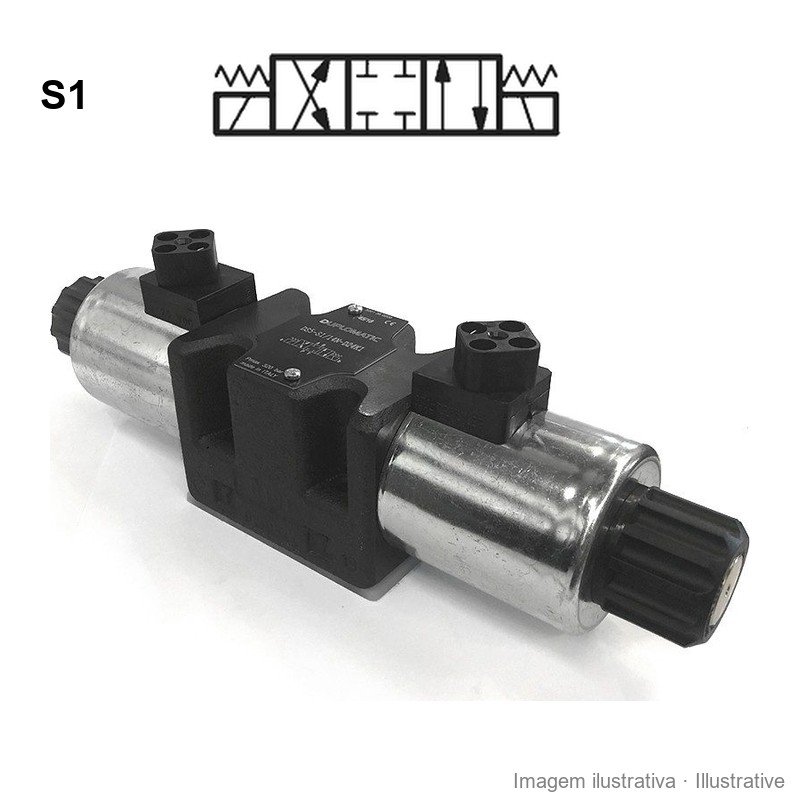

Duplomatic DS5 direct-acting directional solenoid valve, NG10 (CETOP 5), up to 320 bar and 150 l/min. Available with 12 and 24 V DC or 48, 110 and 230 V AC coils, or without coils.

Operation: 2 solenoids, 3 positions (4/3)
Spool: S1
Current: DC
Voltage: 24 V
Extras: None
Quantity
Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.DS5S1D24

Request a commercial proposal

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

Duplomatic DS5 directional solenoid valve, direct acting, ISO 4401-05 subplate mounting, NG10 (CETOP 5). The body is cast iron with wide internal passages to reduce pressure drop, and the coils are interchangeable.

  • Maximum pressure: 320 bar on ports P, A and B; 210 bar on port T (DC version).
  • Maximum flow: 150 l/min in DC and 120 l/min in AC.
  • EN 175301-803 (ex DIN 43650) coil connector.

In the options you choose the operation (one coil and two positions, two coils and three spring-centred positions, or two coils and two positions with RK detent), the spool type (S1 to S10, S20, TA, TA23), the current and the voltage. The "without coils" version comes with the coil locking ring and O-ring.

To replace a fitted valve, check the spool type and coil voltage on the nameplate.

Source: Duplomatic DS5 technical catalogue, version 41 310/119 ED.
