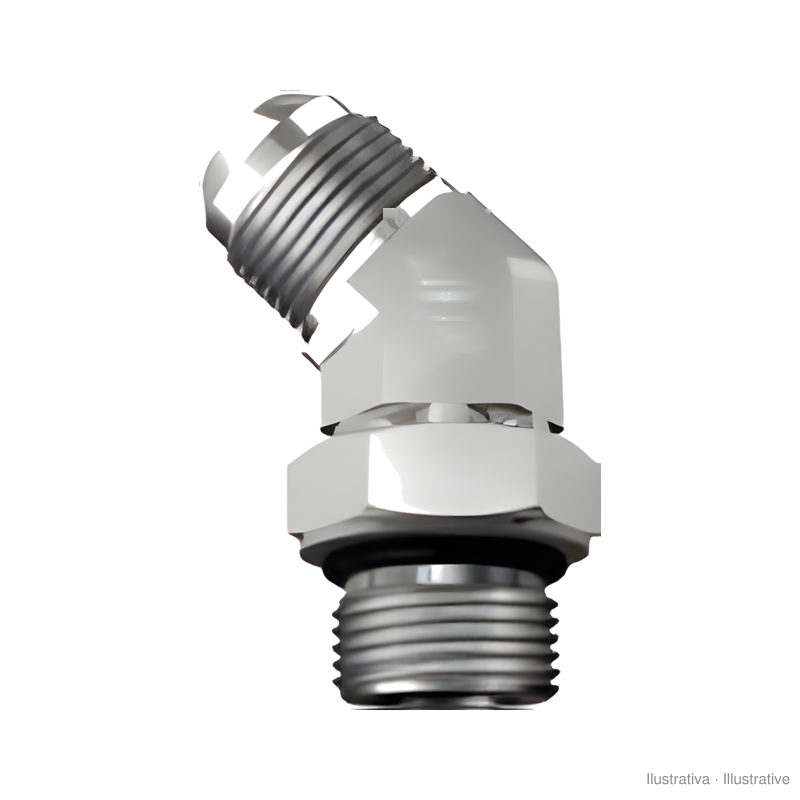

45° male-male JIC-UNF elbow (S590)

Name: 45° male-male JIC-UNF elbow (S590)
Availability: InStock

€20.58

Tax included Delivery in 1 to 5 working days.

(16.73 € No tax)

45° male-male JIC and O-ring UNF elbow, S590 series.

JIC accessory: 7/16" - 7/16"

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0606.716716

€16.73 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

45° elbow, S590 series, with an O-ring male UNF end, which fits a UNF port (ORB type, common on pumps and valves of American origin), and a male JIC 37° end for the hose fitting. The UNF side seals with the O-ring in the port chamfer; the JIC side seals metal to metal on the 37° cone.

There are two sizes, with the same thread on both sides: 7/16"-7/16" and 7/8"-7/8".

Check the UNF port size before ordering: 7/16" is about 11.1 mm thread outside diameter and 7/8" about 22.2 mm.

Reference 1.0606.716716
