KTR BOWEX machined and splined steel hubs

€366.43
Tax included Delivery in 1 to 5 working days.

(297.91 € No tax)

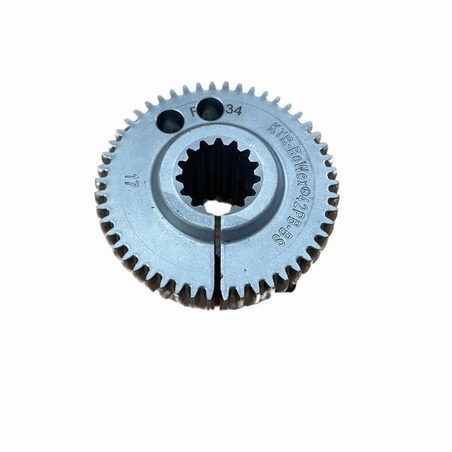

KTR BOWEX steel hubs already machined: SAE and DIN splines, cylindrical bore with keyway or pilot bore, sizes 14 to 100.

Bowex hub: Bowex 42 - clamping hub PH-S, Z9, 16/32
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2025.42Z916

€297.91 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Steel hubs for KTR BOWEX gear couplings, with the bore already machined, to fit on the pump or motor shaft. They fit into the BOWEX sleeve of the same size or, on diesel engine couplings, into the FLE-PA flange.

  • SAE splines: 16/32 DP (from 9 to 33 teeth), 12/24 DP (17 teeth) and 8/16 DP (13 and 17 teeth), as clamping hubs and bushes (KTR designations PH-S, PB-S, PB-BS, PA-S, PD-S, PE-S, PS-S, PK-S and PQ-C).
  • DIN splines: DIN 5480 (30x2, 35x2, 40x2 and 50x2), DIN 5482 (17x14) and DIN 5462 (8x32x36).
  • Cylindrical bore with keyway: Ø10, Ø19H7, Ø28H7, Ø31.75 (SAE C) and Ø45.
  • Pilot bore for machining (Ø22H9, Ø26H9 and Ø31H9) and unbored hub.

Each option states the BOWEX size, the bore type and the reference. Check the shaft spline (number of teeth and pitch, or DIN standard) and the coupling size before ordering.

Source: KTR BoWex technical catalogue, 2011.

1.2025.42Z916

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (38)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
Bowex 14 - sleeve PA ⌀10 with keyway and thread
KTR.010141101000
On request
Bowex 14 - hub PA ⌀10 with keyway and thread
KTR.010141001000
On request
Bowex 24 - clamping hub 17x14 DIN 5482
KTR.010242041701
On request
Bowex 28 - sleeve ⌀19H7 with keyway
KTR.010282001900
On request
Bowex 38 - sleeve ⌀28H7 with keyway
KTR.010382002800
On request
Bowex 42 - clamping hub PB-BS, Z15, 16/32
1.2025.42Z1516
On request
Bowex 42 - clamping hub PB-S, Z11, 16/32
1.2025.42Z1116
Last units
€440.10
Bowex 42 - clamping hub PB-S, Z13, 16/32
1.2025.42Z1316
Last units
€320.12
Bowex 42 - clamping hub PH-S, Z9, 16/32
1.2025.42Z916
Last units
€366.43
Bowex 42 - clamping hub Z14, 30x2x14x8H DIN 5480
1.2025.42302148H
On request
Bowex 45 - sleeve I
KTR.010451000030
On request
Bowex 48 - sleeve ST without bore
KTR.010482000040
Last units
€93.92
Bowex 48 - sleeve ST, pilot bore ⌀22H9
KTR.010482050050
Last units
€117.75
Bowex 48 - clamping hub PA-S, Z21, 16/32
KTR.010482045732
Last units
€410.29
Bowex 55 - clamping hub 8x32x36 DIN 5462
KTR.010552044702
Last units
€406.60
Bowex 55 - clamping hub 35x2x16x8H DIN 5480
KTR.010555040901
Last units
€418.37
Bowex 65 - sleeve PA-S, Z21, 16/32, without inner collar
1.2025.010655045815
On request
Bowex 65 - sleeve PA-S, Z23, 16/32 (P664301)
1.2025.010652045635
Last units
€405.49
Bowex 65 - sleeve ST PS-S, Z17, 12/24
1.2025.010655045790
On request
Bowex 65 - sleeve ST, pilot bore ⌀26H9
KTR.010655060003
Last units
€300.94
Bowex 65 - sleeve Z33, 16/32, L55
KTR.010655049707
On request
Bowex 65 - sleeve ⌀31,75 SAE-C
KTR.010652023150
Last units
€230.38
Bowex 65 - sleeve ⌀45
1.2025.010652004500
On request
Bowex 65 - clamping hub 35x2x16x8H DIN 5480 (P500301)
KTR.010652040532
Last units
€388.01
Bowex 65 - clamping hub 40x2x18x8H DIN 5480 (P500302)
KTR.010652040710
On request
Bowex 70 - sleeve ST PK-S, Z13, 8/16
1.2025.010705045707
On request
Bowex 80 - sleeve PK-S, Z13, 8/16
1.2025.010805045719
In stock
€376.27
Bowex 80 - sleeve ST 50x2x24x8H DIN 5480
1.2025.010805040713
On request
Bowex 80 - sleeve ST, pilot bore ⌀31H9
KTR.010805060051
Last units
€330.65
Bowex 80 - clamping hub 35x2x16x8H DIN 5480
KTR.010805040731
On request
Bowex 80 - clamping hub PE-S, Z27, 16/32, without inner collar
KTR.010805045768
On request
Bowex 80 - sleeve I
KTR.010801000015
Last units
€479.68
Bowex 100 - sleeve PK-S, Z13, 8/16
1.2025.011005045783
Last units
€671.36
Bowex 100 - sleeve PQ-C, Z17, 8/16
1.2025.011005045723
Last units
€717.51
Bowex Junior 24 - sleeve PA with keyway and thread
1.2025.PA24
Last units
€22.88
Bowex M-80 - sleeve PD-S, Z23, 16/32
1.2025.8023T1632
Last units
€586.60
Bowex M-80 - sleeve PK-S, Z13, 8/16
1.2025.8013T816
Last units
€494.21
Bowex M-80 - sleeve Z27, 16/32, L55
1.2025.8027T1632
Last units
€532.10
